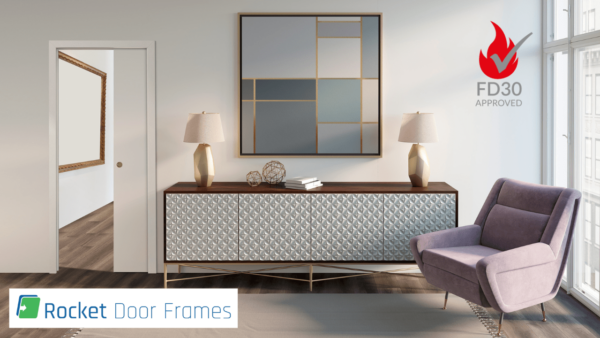

A modern living room features a geometric cabinet, two table lamps, abstract wall art, a mauve armchair, and the Rocket Door Frames - 75mm Fire Rated Pocket Door Kit (FD30 Approved) in the background with visible branding.

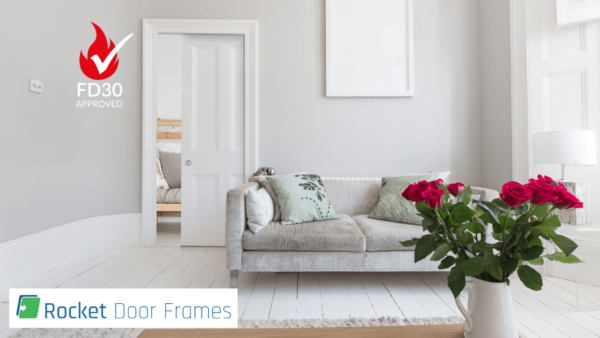

A bright living room with a light grey sofa, green cushions, and red roses on a white table. An open door with Rocket Door Frames - 75mm Fire Rated Pocket Door Kit displays the FD30 Approved fire safety logo and sleek pocket door design.

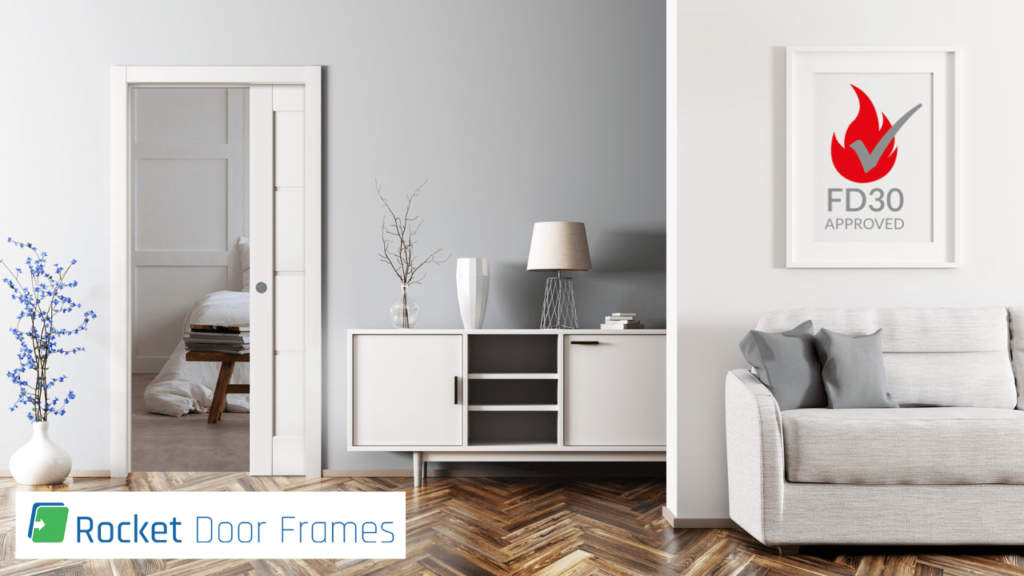

A modern living room with grey walls, white sofa, sideboard, and lamp features a framed FD30 Approved fire safety sign and Rocket Door Frames logo. A partially open sliding door reveals a bedroom with the 75mm Fire Rated Pocket Door Kit.

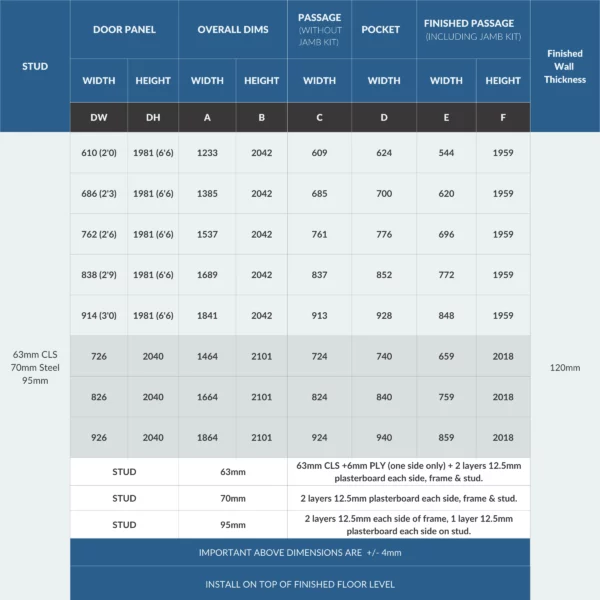

A detailed table shows Rocket Door Frames - 75mm Fire Rated Pocket Door Kit dimensions: door panel size, overall dimensions, passage size, pocket size, and finished passage—including specs for various wall thicknesses and stud types.

Rocket Door Frames – 70mm Fire Rated Pocket Door Kit

£399.95ex. Vat
£479.94Inc. Vat

FD30 Pocket door frame for 63mm CLS, 70mm Steel or 95mm stud work.

This kit is suitable for:

  • Doors 44mm thick
  • Doors up to 60 kg in weight
  • 63mm,70mm or 95mm stud work (see dimension table.)

Kit Contents:

  • A full Solid Oak FD30 approved jamb kit
  • Intumescent pack. (Can be painted with fire resistant paint.)
  • All the galvanised steel uprights and horizontals required to build the pocket, plus the track
  • The brackets to fit the frame to the stud work that double as plasterboard positioners and supports
  • Adjustable pocket entrance floor guide
  • Runners with carbon steel ‘sealed for life’ bearings
  • A spring steel door brake (30kg – 45kg soft close option available) Soft Close

What you need to supply:

    • 44mm FD30 fire rated door panel, max weight 60kg
    • Stud work to suit
    • Plasterboard (See dimensions table.)

Please note that you will need to purchase Jeld-wen FD30 doors. These can be purchased at places such as: B&Q, Travis Perkins, Jewsons, Screwfix and many more.



Stock Status In Stock

Product Details

Stock Status In Stock

Further Information

FD30 Pocket door frame for 63mm CLS, 70mm Steel or 95mm stud work.

This kit is suitable for:

  • Doors 44mm thick
  • Doors up to 60 kg in weight
  • 63mm,70mm or 95mm stud work (see dimension table.)

Kit Contents:

  • A full Solid Oak FD30 approved jamb kit
  • Intumescent pack. (Can be painted with fire resistant paint.)
  • All the galvanised steel uprights and horizontals required to build the pocket, plus the track
  • The brackets to fit the frame to the stud work that double as plasterboard positioners and supports
  • Adjustable pocket entrance floor guide
  • Runners with carbon steel ‘sealed for life’ bearings
  • A spring steel door brake (30kg – 45kg soft close option available) Soft Close

What you need to supply:

    • 44mm FD30 fire rated door panel, max weight 60kg
    • Stud work to suit
    • Plasterboard (See dimensions table.)

Please note that you will need to purchase Jeld-wen FD30 doors. These can be purchased at places such as: B&Q, Travis Perkins, Jewsons, Screwfix and many more.



Item 1 Content

This is the content for Item 1.

Item 2 Content

This is the content for Item 2.

Item 3 Content

This is the content for Item 3.

Item 4 Content

This is the content for Item 4.

Related Products

Tailor your security door to meet specific and unique requirements with these related products.

Rocket Door Frames – 90mm Fire Rated Pocket Door Kit
In Stock

Rocket Door Frames – 90mm Fire Rated Pocket Door Kit

From: £429.95 – £439.95 (Ex. VAT)
From: £515.94 – £527.94 (Inc. VAT)

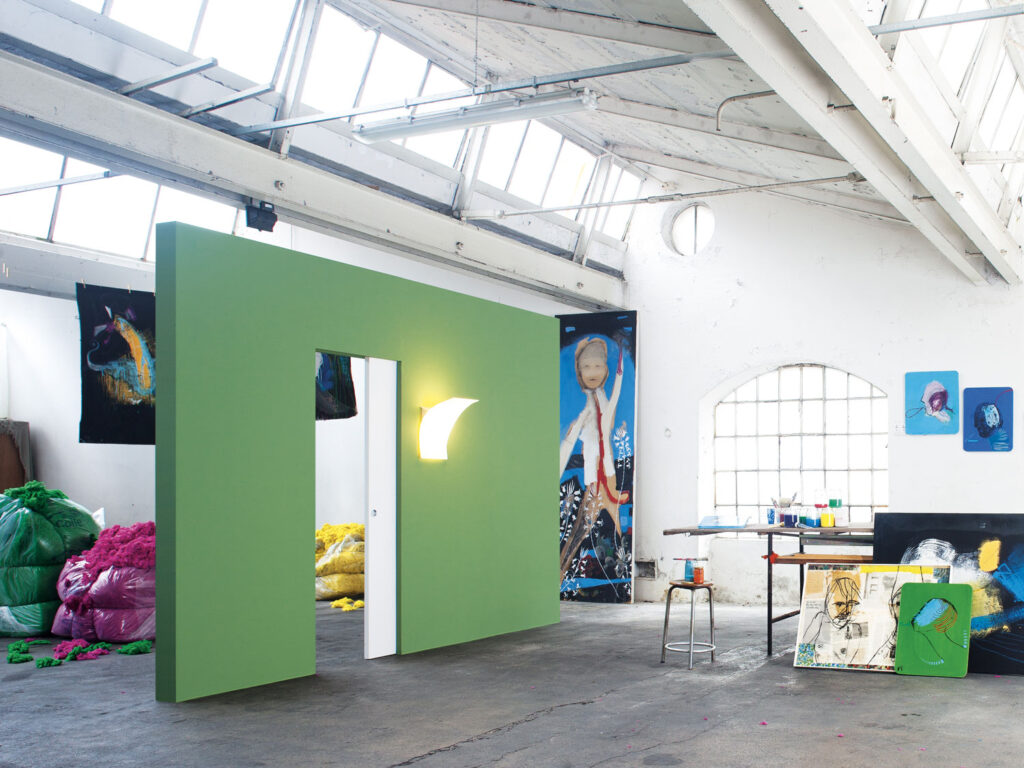

ECLISSE Pocket Door System – Syntesis® Single Wiring-Ready
